Is there a way to edit current NJ ATR indicator or an indicator that would just display the ATR number on the chart?
Thanks
I don’t know of anything that does this already. Have you tried searching the ecosystem? If you don’t mind doing a little coding work you could easily do this by combining the ATR indicator with Draw.Text() in a custom indicator.
You can get the ATR displayed in the chart scale as a number, without a plot.
Add ATR.
Panel: same as input series
Price Marker: Check
Scale Justification: Overlay
Plot Style: Price Box
or, here is an basic indicator I made sometime ago
#region Using declarations
using System;
using System.ComponentModel;
using System.ComponentModel.DataAnnotations;
using System.Windows.Media;
using NinjaTrader.Cbi;
using NinjaTrader.Data;
using NinjaTrader.Gui;
using NinjaTrader.Gui.Chart;
using NinjaTrader.Gui.SuperDom;
using NinjaTrader.Gui.Tools;
using NinjaTrader.NinjaScript;
using NinjaTrader.NinjaScript.DrawingTools;
using NinjaTrader.NinjaScript.Indicators;
using System.Xml.Serialization;
#endregion
namespace NinjaTrader.NinjaScript.Indicators
{
public class ATRTextDisplay : Indicator
{
private ATR atr;
private string atrLabel;
private int MyVar;
private string TopPadding_String;
private string BottomPadding_String;
protected override void OnStateChange()
{
if (State == State.SetDefaults)
{
Name = "ATRText";
Description = "Displays the current ATR value as fixed text on the chart.";
Calculate = Calculate.OnBarClose;
IsOverlay = true;
ATRPeriod = 14;
// My Defaults
MyVar = 0;
TextPosition = TextPosition.BottomRight;
TopPadding = 0;
BottomPadding = 1;
TopPadding_String = "";
BottomPadding_String = "";
MyBrush = Brushes.Black;
MyBackground = Brushes.Transparent;
MyBackgroundOpacity = 100;
MyFont = new SimpleFont("Montserrat", 10) { Bold = false };
}
else if (State == State.DataLoaded)
{
atr = ATR(ATRPeriod);
}
}
protected override void OnBarUpdate()
{
if (CurrentBar < ATRPeriod)
return;
double currentATR = atr[0];
atrLabel = $"ATR = {currentATR:F2}";
//Top & Bottom Padding
// Run Once
if (
MyVar == 0
)
{
for (int i = 1; i <= TopPadding; I++)
{
TopPadding_String += "\n";
}
for (int i = 1; i <= BottomPadding; I++)
{
BottomPadding_String += "\n";
}
// No Loop
MyVar = 1;
}
Draw.TextFixed(this, "ATR", TopPadding_String + atrLabel + BottomPadding_String, TextPosition, MyBrush, MyFont, Brushes.Transparent, MyBackground, MyBackgroundOpacity);
}
#region Properties
// ATR
[Range(1, int.MaxValue)]
[Display(Name = "ATR Period", Description = "ATR lookback period", Order = 1, GroupName = "Parameters")]
public int ATRPeriod { get; set; }
//PARAMETER Text Position
[NinjaScriptProperty]
[Display(Name="Indicator Position", Order=3, GroupName="Parameters")]
public TextPosition TextPosition
{ get; set; }
// PARAMETER Top Padding
[NinjaScriptProperty]
[Range(0, 100)]
[Display(Name="Top Padding", Description="Top Padding", Order=4, GroupName="Parameters")]
public int TopPadding
{ get; set; }
// PARAMETER Bottom Padding
[NinjaScriptProperty]
[Range(0, 100)]
[Display(Name="Bottom Padding", Description="Bottom Padding", Order=5, GroupName="Parameters")]
public int BottomPadding
{ get; set; }
// PARAMETER Font
[Display(ResourceType = typeof(Custom.Resource), Name = "Font", GroupName = "Parameters", Order = 6)]
public SimpleFont MyFont
{ get; set; }
// PARAMETER Brush
[NinjaScriptProperty]
[XmlIgnore]
[Display(Name="MyBrush", Description="My Brush desc", Order=7, GroupName="Parameters")]
public Brush MyBrush
{ get; set; }
[Browsable(false)]
public string MyBrushSerializable
{
get { return Serialize.BrushToString(MyBrush); }
set { MyBrush = Serialize.StringToBrush(value); }
}
// PARAMETER Background
[NinjaScriptProperty]
[XmlIgnore]
[Display(Name="MyBackground", Description="My Background Desc", Order=8, GroupName="Parameters")]
public Brush MyBackground
{ get; set; }
[Browsable(false)]
public string MyBackgroundSerializable
{
get { return Serialize.BrushToString(MyBackground); }
set { MyBackground = Serialize.StringToBrush(value); }
}
// PARAMETER MyBackground Opacity
[NinjaScriptProperty]
[Range(0, 100)]
[Display(Name="Background Opacity", Description="Background Opacity", Order=9, GroupName="Parameters")]
public int MyBackgroundOpacity
{ get; set; }
#endregion
}
}

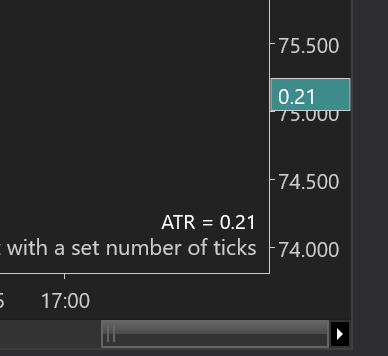

you can see both here:
3 Likes
#region Using declarations
using System;
using System.ComponentModel;
using System.Diagnostics;
using System.Drawing;
using System.Drawing.Drawing2D;
using System.Xml.Serialization;
using NinjaTrader.Cbi;
using NinjaTrader.Data;
using NinjaTrader.Gui.Chart;
#endregion
// This namespace holds all indicators and is required. Do not change it.
namespace NinjaTrader.Indicator
{
///
///
///
/// *** You may freely distribute this script, but if you make changes please add your comments below
///
/// Revision Author Date Comments
/// ________ ______ ____ ________
/// 1.0 Khoi(Cory) Nguyen
///
[Description("Average Daily Range ")]
public class ADR_Cory : Indicator
{
#region Variables
// Wizard generated variables
// User defined variables (add any user defined variables below)
private DateTime currentDate = Cbi.Globals.MinDate;
private DateTime now,prevDay,prev2Day,prev3Day,startDay,saveBar,countdnDay;
private int beginTime = 161400;
private int endTime = 093000;
private DateTime startDateTime;
private DateTime endDateTime;
private double highestHigh = 0;
private double lowestLow = 0;
double adr, adr2, close1, close2 = 0.0;
private double open = 0;
private double high = 0;
private double low = 0;
private double adrmean = 0;
private double adrstd = 0;
private double adrstddistance = 0;
private double adrzscore = 0;
private double adrabovelast = 0;
private double adrpullback = 0;
private double adrtotalpos = 0;
private double adroverext = 0;
private bool gapUp = false;
private bool gapDn = false;
private Color rangeColorDn = Color.DarkGoldenrod;
private int rangeColorOpacity = 2;
private Color rangeColorUp = Color.DodgerBlue;
private int barWidth =3;
private Font tfont = new Font("Arial", 8, FontStyle.Bold, GraphicsUnit.Point);
private Color barColorUp = Color.DarkCyan;
private Color barColorDown = Color.IndianRed;
private Color barColorNeutral = Color.Gray;
private Color barColor = Color.Gray;
private double todaysLow = 0;
private double todaysHigh = 0;
private double todaysRange = 0;
private int hBar =0;
private int lBar =0;
int daysBack = 5;
int daycount,daywithdata = 0;
int comparevalue = 0;
bool firstTime = true, firsttimetoday = true;
int barNotProcess = 0;
private double[] arrayRange = new double[13000];
#endregion
/// <summary>
/// This method is used to configure the indicator and is called once before any bar data is loaded.
/// </summary>
protected override void Initialize()
{
CalculateOnBarClose = false;
Overlay = true;
PriceTypeSupported = false;
now = DateTime.Today; // today date
prevDay = now.AddDays(-1); // yesterday date
prev2Day = now.AddDays(-2);
prev3Day = now.AddDays(-3);
startDay = now.AddDays(-daysBack); // days back
countdnDay = now.AddDays(-daysBack); // days count down
}
/// <summary>
/// Called on each bar update event (incoming tick)
/// </summary>
protected override void OnBarUpdate()
{
if (Bars == null)
return;
//Only allowed on Intraday charts.
if (!Data.BarsType.GetInstance(Bars.Period.Id).IsIntraday)
{
DrawTextFixed("error msg", "Indicator only works on intraday intervals", TextPosition.BottomRight);
return;
}
int sessionsBarsAgo = 0;
// DateTime bar = new DateTime(Bars.GetSessionBar(sessionsBarsAgo).Time.Year, Bars.GetSessionBar(sessionsBarsAgo).Time.Month, Bars.GetSessionBar(sessionsBarsAgo).Time.Day, Bars.SessionBegin.Hour, Bars.SessionBegin.Minute, Bars.SessionBegin.Second);
DateTime bar = Bars.GetTradingDayFromLocal(Time[0]);
string format = "yyyyMMdd";
// Print (" bar "+bar.ToString(format)+" startDay "+startDay.ToString(format));
// filter out date earlier than start date
int result = (DateTime.Compare(bar, startDay));
if (result < 0)
return;
// Print(CurrentBar+ " bar "+bar+" start day "+startDay+" result "+result);
// print result if today start
if (bar.ToString(format) == now.ToString(format))
{
if (firsttimetoday)
{ highestHigh = 0;
lowestLow = 999999999.99;
firsttimetoday = false;
int d = daywithdata;
// Print ( "daywith data "+ daywithdata);
while (d > 0)
{adr = adr + arrayRange[d];
d--;
}
adr = adr/daywithdata;
// int ds = daysBack;
// while (ds > 0)
// {Print ( " hist time "+Bars.GetSessionBar(ds).Time+ " high "+Bars.GetSessionBar(ds).High+ " low "+Bars.GetSessionBar(ds).Low);
// ds--;
// }
}
// Print (CurrentBar+ " high0 "+highestHigh+" low0 "+lowestLow);
if (High[0] > highestHigh) highestHigh = High[0];
if (Low[0] < lowestLow) lowestLow = Low[0];
todaysLow = lowestLow;
todaysHigh = highestHigh;
todaysRange = todaysHigh - todaysLow;
string text3 = string.Format("Hist ADR: {0} Curr ADR: {1}\r\n ", Instrument.MasterInstrument.Round2TickSize(adr),
Instrument.MasterInstrument.Round2TickSize(todaysRange));
DrawTextFixed("cory", text3, TextPosition.TopLeft);
// ++++
open = CurrentDayOHL().CurrentOpen[0];
high = CurrentDayOHL().CurrentHigh[0];
low = CurrentDayOHL().CurrentLow[0];
close1 = PriorDayOHLC().PriorClose[0];
// adrmean = (high - low ) / 2;
// if ((adrmean - adr) > 0)
// {
// Print("ADR left to mean : " + Math.Round(adrmean - adr,2));
// }
// if ((adrmean - adr) < 0)
// {
// Print("ADR over mean by: " + Math.Round(adr - adrmean,2) + "%");
// }
if (Close[0] > open)
{
string text33 = string.Format("\r\n\rPrice: {0} Open: {1} Diff: +{2}",Close[0], open, Instrument.MasterInstrument.Round2TickSize(Close[0] - open));
DrawTextFixed("Nebraska", text33, TextPosition.TopLeft);
}
if (Close[0] < open)
{
string text33 = string.Format("\r\n\rPrice: {0} Open: {1} Diff: -{2}",Close[0] , open, Instrument.MasterInstrument.Round2TickSize(open -Close[0]));
DrawTextFixed("Nebraska", text33, TextPosition.TopLeft);
}
if (Close[0] > close1)
{
string text4 = string.Format("\n\n\rPrice: {0} Prior Close: {1} Diff: +{2}",Close[0], close1, Instrument.MasterInstrument.Round2TickSize(Close[0] - close1));
DrawTextFixed("aa", text4, TextPosition.TopLeft);
}
if (Close[0] < close1)
{
string text4 = string.Format("\n\n\rPrice: {0} Prior Close: {1} Diff: -{2}",Close[0] , close1, Instrument.MasterInstrument.Round2TickSize(close1 -Close[0]));
DrawTextFixed("aa", text4, TextPosition.TopLeft);
}
}
else {
countdnDay = now.AddDays(-daysBack+daycount);
int result2 = (DateTime.Compare(bar, countdnDay));
// Print(CurrentBar+ " bar "+bar+" cdndat "+countdnDay+" result2 "+result2);
if (result2 == 0)
{
if (firstTime)
{
highestHigh = 0;
lowestLow = 999999999.99;
firstTime = false;
saveBar = countdnDay;
daywithdata = 1;
}
// Print(CurrentBar+ " savebar "+saveBar+" cdnday "+countdnDay);
int result3 = (DateTime.Compare(saveBar, countdnDay));
if (result3 != 0)
{saveBar = countdnDay;
daywithdata = daywithdata + 1;
highestHigh = 0;
lowestLow = 999999999.99;
}
while (barNotProcess > 0)
{
if (High[barNotProcess] > highestHigh) highestHigh = High[barNotProcess];
if (Low[barNotProcess] < lowestLow) lowestLow = Low[barNotProcess];
barNotProcess--;
}
// Print(CurrentBar+ " savebar "+saveBar+" cdnday "+countdnDay+" result3 "+result3+ " daywdata "+daywithdata);
if (High[0] > highestHigh)
{
highestHigh = High[0];
hBar = CurrentBar;
// DrawDiamond("Stop High" , 0, High[0] + TickSize, Color.Red);
}
if (Low[0] < lowestLow)
{
lowestLow = Low[0];
lBar = CurrentBar;
// DrawDiamond("Stop Low" , 0, Low[0] - TickSize, Color.Blue);
}
arrayRange[daywithdata] = Instrument.MasterInstrument.Round2TickSize(highestHigh - lowestLow);
// Print (" days= "+daywithdata+ " high= "+highestHigh+" low= "+lowestLow+ " adr "+arrayRange[daywithdata]);
}
else
// if (!firstTime)
{ daycount = daycount + 1;
barNotProcess = barNotProcess + 1;
}
} // end of getting H/L value
} // end on bar update
#region Properties
[Description("Number of Days Back includes Sat. Sun.")]
[Category("Parameters")]
[Gui.Design.DisplayName("Days to calculate ADR")]
public int DayBack
{
get { return daysBack; }
set { daysBack = Math.Max(value, 0); }
}
#endregion
}
}
#region NinjaScript generated code. Neither change nor remove.
// This namespace holds all indicators and is required. Do not change it.
namespace NinjaTrader.Indicator
{
public partial class Indicator : IndicatorBase
{
private ADR_Cory cacheADR_Cory = null;
private static ADR_Cory checkADR_Cory = new ADR_Cory();
/// <summary>
/// Average Daily Range
/// </summary>
/// <returns></returns>
public ADR_Cory ADR_Cory(int dayBack)
{
return ADR_Cory(Input, dayBack);
}
/// <summary>
/// Average Daily Range
/// </summary>
/// <returns></returns>
public ADR_Cory ADR_Cory(Data.IDataSeries input, int dayBack)
{
if (cacheADR_Cory != null)
for (int idx = 0; idx < cacheADR_Cory.Length; idx++)
if (cacheADR_Cory[idx].DayBack == dayBack && cacheADR_Cory[idx].EqualsInput(input))
return cacheADR_Cory[idx];
lock (checkADR_Cory)
{
checkADR_Cory.DayBack = dayBack;
dayBack = checkADR_Cory.DayBack;
if (cacheADR_Cory != null)
for (int idx = 0; idx < cacheADR_Cory.Length; idx++)
if (cacheADR_Cory[idx].DayBack == dayBack && cacheADR_Cory[idx].EqualsInput(input))
return cacheADR_Cory[idx];
ADR_Cory indicator = new ADR_Cory();
indicator.BarsRequired = BarsRequired;
indicator.CalculateOnBarClose = CalculateOnBarClose;
#if NT7
indicator.ForceMaximumBarsLookBack256 = ForceMaximumBarsLookBack256;
indicator.MaximumBarsLookBack = MaximumBarsLookBack;
#endif
indicator.Input = input;
indicator.DayBack = dayBack;
Indicators.Add(indicator);
indicator.SetUp();
ADR_Cory[] tmp = new ADR_Cory[cacheADR_Cory == null ? 1 : cacheADR_Cory.Length + 1];
if (cacheADR_Cory != null)
cacheADR_Cory.CopyTo(tmp, 0);
tmp[tmp.Length - 1] = indicator;
cacheADR_Cory = tmp;
return indicator;
}
}
}
}
// This namespace holds all market analyzer column definitions and is required. Do not change it.
namespace NinjaTrader.MarketAnalyzer
{
public partial class Column : ColumnBase
{
///
/// Average Daily Range
///
///
[Gui.Design.WizardCondition(“Indicator”)]
public Indicator.ADR_Cory ADR_Cory(int dayBack)
{
return _indicator.ADR_Cory(Input, dayBack);
}
/// <summary>
/// Average Daily Range
/// </summary>
/// <returns></returns>
public Indicator.ADR_Cory ADR_Cory(Data.IDataSeries input, int dayBack)
{
return _indicator.ADR_Cory(input, dayBack);
}
}
}
// This namespace holds all strategies and is required. Do not change it.
namespace NinjaTrader.Strategy
{
public partial class Strategy : StrategyBase
{
///
/// Average Daily Range
///
///
[Gui.Design.WizardCondition(“Indicator”)]
public Indicator.ADR_Cory ADR_Cory(int dayBack)
{
return _indicator.ADR_Cory(Input, dayBack);
}
/// <summary>
/// Average Daily Range
/// </summary>
/// <returns></returns>
public Indicator.ADR_Cory ADR_Cory(Data.IDataSeries input, int dayBack)
{
if (InInitialize && input == null)
throw new ArgumentException("You only can access an indicator with the default input/bar series from within the 'Initialize()' method");
return _indicator.ADR_Cory(input, dayBack);
}
}
}
#endregion
1 Like
Thank you all, much appreciated!
I tried adding your script but continue to get error messages, I’ve never done this before so I don’t really know what I’m doing.

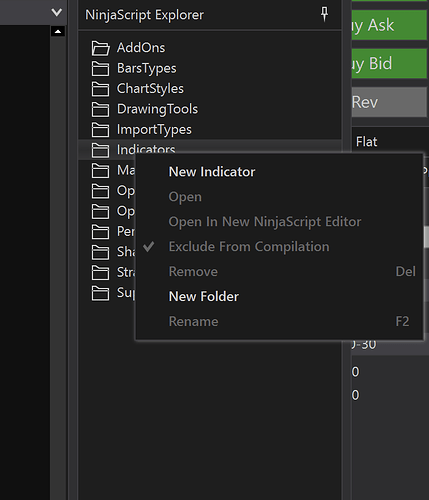

open the NinjaScript editor, right click indicators > new indicator:

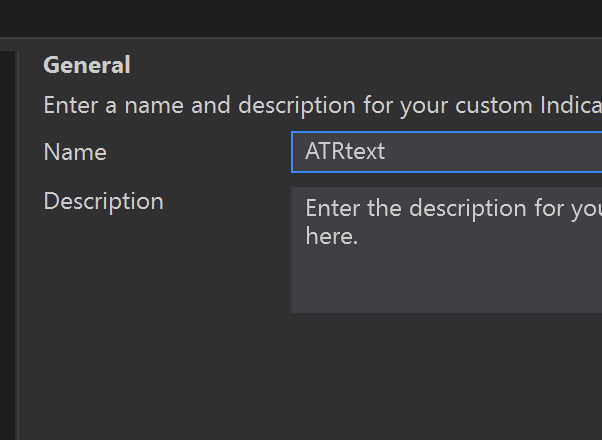

name the file, click generate
paste the code, then click compile:

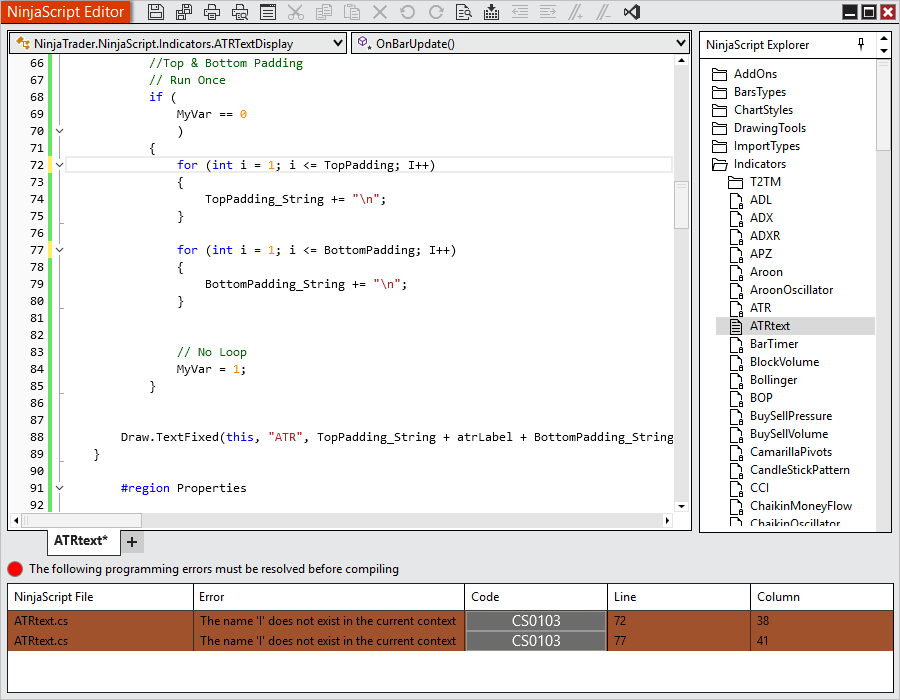

I think the forum software changed something.
See the capital I on line 72 and 77, make it a small lowercase i
1 Like
That worked, thanks for your help!
